Specifying increment Value


Specifying increment Value:

Using “step” define how to update the value stored in the binding value and display it

Code:

struct ContentView: View { @State var Value: Double = 0 var body: some View { VStack { Slider(value: $Value, in: 0...100, step:10) }.padding() Text ("Slider value is \(Int(Value))") } }

Output:

Initial

ios output

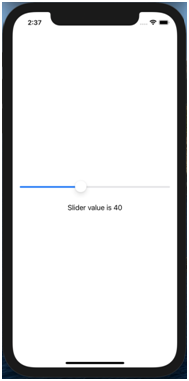

On moving the slider

ios output

Making the Slider more Visual:

Add some text using HStacks to show the minimum and maximum values of the slider and display current

Code:

var body: some View { VStack { HStack{ Text("0") Slider(value: $Value, in: 0...100, step:10) Text("100") } }.padding() Text ("Slider value is \(Int(Value))") } }

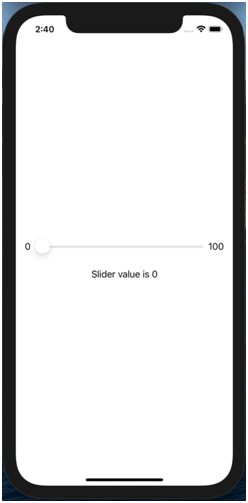

Output:

ios output

For decimal values upto 2 spaces after the decimal use (and add some font colour) we can change the code as follows :

Code:

var body: some View { VStack { HStack{ Text("0") Slider(value: $Value, in: 0...100, step:10) Text("100") } }.padding() Text("Slider value: \(Value, specifier: "%.2f")") .foregroundColor(.blue) } }

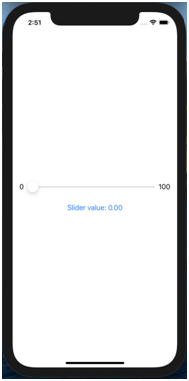

Output:

ios output
