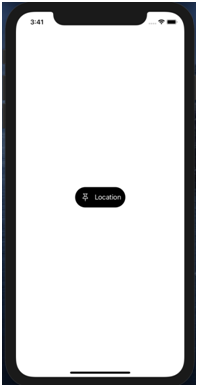

Create Background Shapes

To create custom background shapes clip the background colour using shapes

Code:

struct ContentView: View {
    var body: some View {

        Label {
            Text("Location")
                .foregroundColor(Color.white)

        } icon: {
            Image(systemName: "pin")
                            .foregroundColor(Color.white)
        }.padding(10)
        .background(Color.black)
        .clipShape(Capsule())
        }

}




Output:

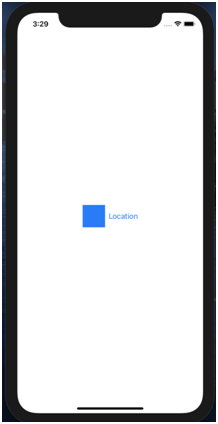

To use shapes instead of images Example-

Code:

Label {
            Text("Location")
                .foregroundColor(Color.blue)
        } icon: {
            Rectangle()
                    .frame(width: 50, height: 50)
                    .foregroundColor(.blue)




Output:

Additional-

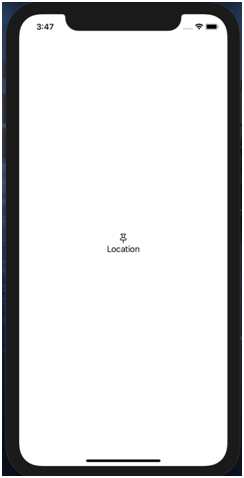

Sometimes we may require vertical labels. To create vertical labels use VStacks with a custom label class we call verticalLabelStyle & call different parts of your label to be displayed in a vertical stack.

Code:

import SwiftUI

struct ContentView: View {
    var body: some View {

        Label("Location", systemImage: "pin")
            .labelStyle(VerticalLabelStyle())
    }


}
struct VerticalLabelStyle: LabelStyle {
    func makeBody(configuration: Configuration) -> some View {
        VStack {
            configuration.icon
            configuration.title
        }
    }
}

struct ContentView_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}
